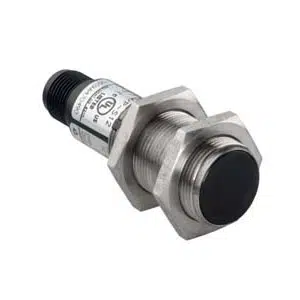

Leuze LSEL 318M/P-S12 Photoelectric Sensor
The Leuze LSEL 318M/P-S12 Photoelectric Sensor (Part No: 50083176 ) offers a - operating range, Transistor, PNP output, M12 Connector 4 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LSEL 318M/P-S12 |
Leuze LSEL 318M/P-S12 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 318 Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | - |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 25 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching Principle | Light switching/Dark switching |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Readiness delay | 30 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Dimension (W x H x L) | 18 mm x 50 mm |
| Housing material | Stainless steel |
| Lens cover material | Plastic |
| Housing color | Black, Silver |
| Type of display | LED |
| Ambient temperature | operation -25 ... 60 °C storage -40 ... 70 °C |
| Degree of protection | IP 67 |
| Net weight | 60 g |
IndMALL Automation Offers Leuze Black Silver Housing Color Receiver Sensor LSEL 318M/P-S12 part no: 50083176 with exclusive offers. Component Specifications of LSEL 318M/P-S12, are 318 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC power supply, 0 ... 25 mA current, 2 Piece(s) digital switching output, Transistor, PNP output, Light switching/Dark switching, 5,000 Hz frequency, M12 Connector, 4 -pin, 18 mm x 50 mm dimensions, Black, Silver housing color, LED
display, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze Black Silver Housing Color Receiver Sensor.
