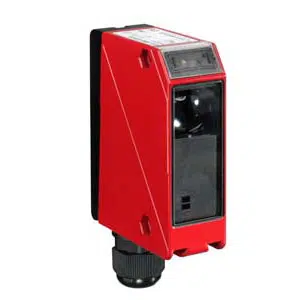

Leuze LSE 96M/P-3010-21 Photoelectric Sensor
The Leuze LSE 96M/P-3010-21 Photoelectric Sensor (Part No: 50082296 ) offers a - operating range, Transistor, PNP output, Terminal 4 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LSE 96M/P-3010-21 |
Leuze LSE 96M/P-3010-21 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 96 Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | - |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 50 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching Principle | Light switching/Dark switching |
| Switching frequency | 500 Hz |
| Response time | - |
| Readiness delay | - |
| Connection Function | - |
| Type of Connection | Terminal |
| Number of conductors or Pins | 4 -pin |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Metal: Zinc |
| Lens cover material | Glass |
| Housing color | - |
| Type of display | LED |
| Ambient temperature | operation -40 ... 55 Β°C |
| Degree of protection | IP 67 |
| Net weight | 380 g |
Reach Us by Email for Leuze Terminal Connection, PNP o/p Receiver Sensor LSE 96M/P-3010-21 part no: 50082296 at Discounted Rates. Key Technical Features of LSE 96M/P-3010-21, are 96 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC power supply, 0 ... 50 mA current, 2 Piece(s) digital switching output, Transistor, PNP output, Light switching/Dark switching, 500 Hz frequency, Terminal, 4 -pin, 30 mm x 90 mm x 70 mm dimensions, LED
display, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze Terminal Connection, PNP o/p Receiver Sensor.
