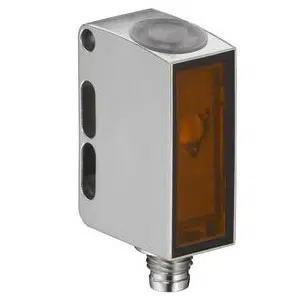

Leuze LS55C/8X-M8 Photoelectric Sensor
The Leuze LS55C/8X-M8 Photoelectric Sensor (Part No: 50148177 ) offers a Throughbeam principle, 4 mm [100 mm] distance, M8 Connector 4-pin .. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LSSR 3 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS55C/8X-M8 |
Leuze LS55C/8X-M8 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 55C Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0.05 ... 8.5 m; Guaranteed operating range |
| Operating range limit | 0.05 ... 10 m; Typical operating range |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Light spot size [at sensor distance] | 4 mm [100 mm] |
| Type of light spot geometry | Round |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 15 mA |
| Readiness delay | 300 ms |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 4-pin |
| Dimension (W x H x L) | 14 mm x 35.4 mm x 25 mm |
| Housing material | Stainless steel: AISI 316L, DIN X2CrNiMo17132, W.No1.4404 |
| Lens cover material | Plastic (PMMA+) with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 70 Β°C Storage: -40 ... 70 Β°C |
| Degree of protection | IP 67, IP 68, IP 69K |
| Net weight | 42 g |
IndMALL Offers Leuze Brand Throughbeam Photoelectric Sensor LS55C/8X-M8 part no: 50148177 at the lowest pricing. Technical Specs Summary of LS55C/8X-M8, 50148177 includes 55C series, Transmitter device, Wash-Down design Activation input special, 0.05 ... 8.5 m; Guaranteed operating range operating range, 0.05 ... 10 m; Typical operating range operating range limit, Divergent beam path, LED, Red light source, 645 nm wavelength, 4 mm [100 mm] light spot size, Round light spot geometry, 10 ... 30 V, DC power supply, M8 Connector, 4-pin, 14 mm x 35.4 mm x 25 mm dimensions, Silver housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 68, IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Brand Throughbeam Photoelectric Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
