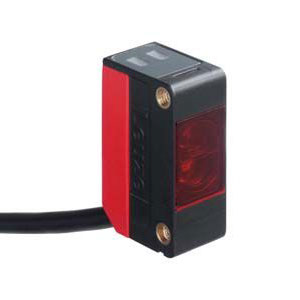

Leuze LS5/XX-200-M8.1 Photoelectric Sensor
The Leuze LS5/XX-200-M8.1 Photoelectric Sensor (Part No: 50147785 ) offers a Throughbeam principle, 0 ... 15 m operating range, PUR 200 mm cable with M8 connector 4-pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS 5 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS5/XX-200-M8.1 |
Leuze LS5/XX-200-M8.1 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 5 Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 ... 15 m |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 15 mA |
| Readiness delay | 300 ms |
| Connection Function | Voltage supply |
| Type of Connection | PUR 200 mm cable with M8 connector |
| Number of conductors or Pins | 4-pin |
| Dimension | 14 mm x 32.5 mm x 20.2 mm |
| Housing material | Plastic: ABS |
| Lens cover material | Plastic |
| Housing color | Black, Red |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 Β°C Storage: -40 ... 70 Β°C |
| Degree of protection | IP 67 |
| Net weight | 20 g |
IndMALL Automation Dealing offers Leuze Snap-in, M8 Connector Photo Sensor LS5/XX-200-M8.1 part no: 50147785 at unbeatable prices. The Main Technical Parameters of LS5/XX-200-M8.1, 50147785 feature 5 series, Throughbeam, Transmitter device, 0 ... 15 m operating range, LED, Red light source, 620 nm wavelength, 10 ... 30 V, DC power supply, 0 ... 15 mA current, PUR 200 mm cable with M8 connector, 4-pin, 14 mm x 32.5 mm x 20.2 mm dimensions, Black, Red housing color, LED display, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze Snap-in, M8 Connector Photo Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
