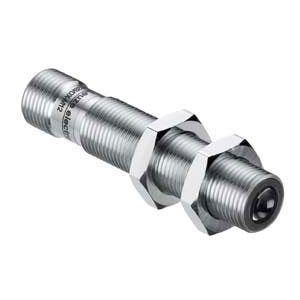

LS412B/DX-M12: 50140150 -Leuze M12 Thread Size Beam Transmitter Sensor
Technical Specifications of Leuze LS412B/DX-M12 50140150:
| Spec | Value |
|---|---|
| Operating Principle | Throughbeam principle |
| Device Type | Transmitter |
| Operating Range | 0 ... 10 m |
| Type of Connection | M12 Connector |
Leuze M12 Thread Size Beam Transmitter Sensor LS412B/DX-M12, 50140150 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 412B |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 ... 10 m |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Power Supply | 10 ... 36 V, DC |
| Open-circuit current | 0 ... 15 mA |
| Readiness delay | - |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4-pin |
| Dimension | 12 mm x 60 mm |
| Housing material | Metal: Chromed brass |
| Lens cover material | Glass |
| Housing color | Silver |
| Type of display | - |
| Ambient temperature | Operation: -25 ... 55 °C |
| Degree of protection | IP 67 |
| Net weight | 32 g |
Mail Us for your needs in Leuze M12 Thread Size Beam Transmitter Sensor LS412B/DX-M12 part no: 50140150 with budget-friendly prices. The Main Technical Parameters of LS412B/DX-M12, 50140150 include 412B series, Throughbeam, Transmitter device, deactivation input special version, 0 ... 10 m operating range, LED, Red light source, 660 nm wavelength, 10 ... 36 V, DC power supply, 0 ... 15 mA current, M12 Connector, 4-pin, 12 mm x 60 mm dimensions, M12 thread size, Silver housing color, - display, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze M12 Thread Size Beam Transmitter Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
