During technical comparisons, LE55CI-H2OX-4P-200-M12 appears alongside Sick Diffuse Sensor, Leuze Ls5B Xx 200 M12 and Leuze Proximity Sensor so engineers assess signal types, ingress protection, and ambient tolerances accurately.

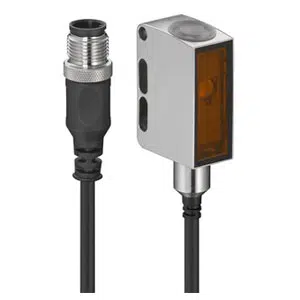

Leuze LE55CI.H2OX/4P-200-M12 Photoelectric Sensor
The Leuze LE55CI.H2OX/4P-200-M12 Photoelectric Sensor (Part No: 50148185 ) offers a 0 ... 64 m operating range, Transistor, PNP output, 200 mm PVC Cable with M12 Connector 4-wire and 4 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE55CI.H2OX/4P-200-M12 |
Leuze LE55CI.H2OX/4P-200-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 55C Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | 0 ... 64 m |
| Power Supply | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 15 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching Principle | Light switching/Dark switching |
| Switching frequency | 350 Hz |
| Response time | 1.43 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | 200 mm PVC Cable with M12 Connector |
| Number of conductors or Pins | 4-wire and 4 -pin |
| Dimension (W x H x L) | 14 mm x 35.4 mm x 25 mm |
| Housing material | Stainless steel |
| Lens cover material | Plastic with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Ambient temperature | operation -40 ... 70 Β°C storage -40 ... 70 Β°C |
| Degree of protection | IP 67, IP 68K, IP 69K |
| Net weight | 59 g |
IndMALL Automation Offers Leuze 64 Operating Range Through Beam Receiver Sensor LE55CI.H2OX/4P-200-M12 part no: 50148185 with exclusive offers. Component Specifications of LE55CI.H2OX/4P-200-M12, are 55C series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 2 Piece(s) digital switching output, Transistor, PNP output, Light switching/Dark switching, 350 Hz frequency, 200 mm PVC Cable with M12 Connector, 4-wire and 4 -pin, 14 mm x 35.4 mm x 25 mm dimensions, Silver housing color, LED
display, IP 67, IP 68K, IP 69K degree of protection. Don't Miss Out on a Quote for your requirement of Leuze 64 Operating Range Through Beam Receiver Sensor.
