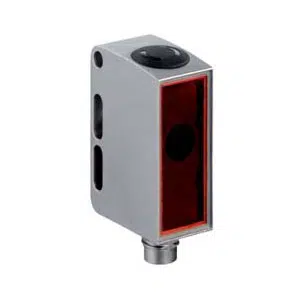

Leuze LSER 55/66,200-S12 Photoelectric Sensor
The Leuze LSER 55/66,200-S12 Photoelectric Sensor (Part No: 50108723 ) offers a 0 ... 8.5 m operating range, Transistor, Push-pull output, 200 mm PUR Cable with M12 Connector 4 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LSER 55/66,200-S12 |
Leuze LSER 55/66,200-S12 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 55 Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | 0 ... 8.5 m |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 14 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Output | Transistor, Push-pull |
| Switching Principle | Light switching (PNP)/dark switching (NPN)/Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | 200 mm PUR Cable with M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Dimension (W x H x L) | 14 mm x 35.5 mm x 25 mm |
| Housing material | Stainless steel |
| Lens cover material | Glass with scratch-resistant Indium coating |
| Housing color | Silver |
| Type of display | LED |
| Ambient temperature | operation -30 ... 55 °C storage -30 ... 55 °C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 60 g |
Send Your Inquiry for Leuze Transistor Push-pull Output Receiver Sensor LSER 55/66,200-S12 part no: 50108723 with cost-effective solutions. Essential Technical Specs of LSER 55/66,200-S12, cover 55 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC power supply, 0 ... 14 mA current, 2 Piece(s) digital switching output, Transistor, Push-pull output, Light switching (PNP)/dark switching (NPN)/Dark switching (PNP)/light switching (NPN), 1,000 Hz frequency, 200 mm PUR Cable with M12 Connector, 4 -pin, 14 mm x 35.5 mm x 25 mm dimensions, Silver housing color, LED
display, IP 67, IP 69K degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze Transistor Push-pull Output Receiver Sensor.
