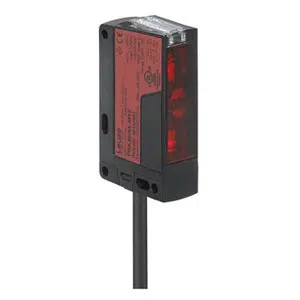

Leuze LE36.1/2 Photoelectric Sensor
The Leuze LE36.1/2 Photoelectric Sensor (Part No: 50147140 ) offers a 0.5 ... 80 m
operating range, Transistor, NPN output, 2,000 mm PUR Cable 3-wire . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE36.1/2 |
Leuze LE36.1/2 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 36 Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | 0.5 ... 80 m |
| Power Supply | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 20 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching Principle | Light switching |
| Switching frequency | 300 Hz |
| Response time | 1.66 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | 2,000 mm PUR Cable |
| Number of conductors or Pins | 3-wire |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic: PC-PBT |
| Lens cover material | Plastic / PMMA |
| Housing color | Black |
| Type of display | LED |
| Ambient temperature | operation -40 ... 60 Β°C storage -40 ... 70 Β°C |
| Degree of protection | IP 67 |
| Net weight | 100 g |
IndMALL Dealing in Leuze 0.5 to 80 m Operating range Receiver Sensor LE36.1/2 part no: 50147140 at the best rates. Operational Specifications for LE36.1/2, are 36 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 1 Piece(s)
digital switching output, Transistor, NPN output, Light switching, 300 Hz frequency, 2,000 mm PUR Cable, 3-wire, 20.5 mm x 76.3 mm x 44 mm
dimensions, Black housing color, LED
display, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 0.5 to 80 m Operating range Receiver Sensor.
