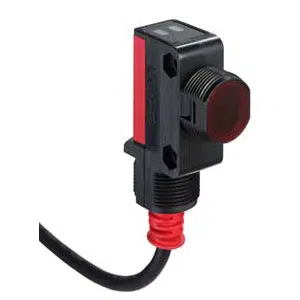

Leuze 10 m, Transistor PNP Through Beam Receiver Sensor LE28/4, 50143791 Technical Specifications:
Specification
Value
Series
28
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0 ... 10 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 15 mA
Number of digital switching outputs
1 Piece(s)
Switching Output
Transistor, PNP
Switching Principle
Light switching
Switching frequency
500 Hz
Response time
1 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
2,000 mm PUR Cable
Number of conductors or Pins
4 -wire
Dimension (W x H x L)
15 mm x 46.5 mm
Housing material
Plastic: ABS
Lens cover material
Plastic
Housing color
Red
Type of display
LED
Ambient temperature
operation -40 ... 60 °C
storage -40 ... 70 °C
Degree of protection
IP 67
Net weight
75 g
Reach Us by Email for Leuze 10 m, Transistor PNP Through Beam Receiver Sensor LE28/4 part no: 50143791 at Discounted Rates. Key Technical Features of LE28/4, are 28 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 1 Piece(s)
digital switching output, Transistor, PNP output, Light switching, 500 Hz frequency, 2,000 mm PUR Cable, 4 -wire, 15 mm x 46.5 mm
dimensions, Red housing color, LED
display, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 10 m, Transistor PNP Through Beam Receiver Sensor.
