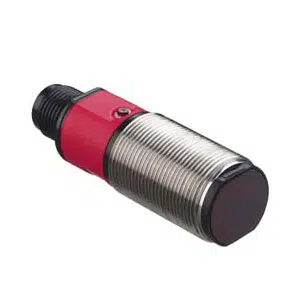

Leuze LED Display Receiver Sensor LE328/2N-M12, 50122711 Technical Specifications:
Specification
Value
Series
328
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0 ... 10 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 15 mA
Number of digital switching outputs
2 Piece(s)
Switching Output
Transistor, NPN
Switching Principle
Light switching/Dark switching
Switching frequency
500 Hz
Response time
1 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
M12 Connector
Number of conductors or Pins
4-pin
Dimension (W x H x L)
18 mm x 46 mm
Housing material
Plastic: Stainless steel
Lens cover material
Plastic
Housing color
Black, Silver
Type of display
LED
Ambient temperature
operation -40 ... 60 °C
storage -40 ... 70 °C
Degree of protection
IP 67
Net weight
20 g
Obtain a Quote for Leuze LED Display Receiver Sensor LE328/2N-M12 part no: 50122711 at economical prices. Specifications Overview for LE328/2N-M12, reveals 328 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 2 Piece(s) digital switching output, Transistor, NPN
output, Light switching/Dark switching, 500 Hz frequency, M12 Connector, 4-pin, 18 mm x 46 mm dimensions, Black, Silver housing color, LED
display, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze LED Display Receiver Sensor.
