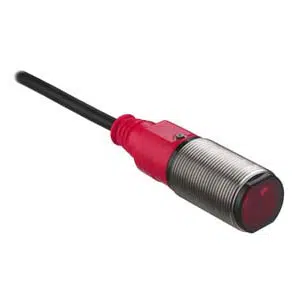

LE328/2N: 50122712 - Leuze PUR Cable Receiver Sensor

Spec	Value
Operating Principle	Throughbeam principle
Device Type	Receiver
Operating Range	0 ... 10 m
Switching Output	Transistor, NPN

Leuze PUR Cable Receiver Sensor LE328/2N, 50122712 Technical Specifications:

Specification	Value
Series	328
Operating principle	Throughbeam principle
Device type	Receiver
Operating range	0 ... 10 m
Power Supply	10 ... 30 V, DC, Incl. residual ripple
Open-circuit current	0 ... 15 mA
Number of digital switching outputs	2 Piece(s)
Switching Output	Transistor, NPN
Switching Principle	Light switching/Dark switching
Switching frequency	500 Hz
Response time	1 ms
Readiness delay	300 ms
Connection Function	Signal OUT Voltage supply
Type of Connection	2000 mm PUR Cable
Number of conductors or Pins	4 -wire
Dimension (W x H x L)	18 mm x 46 mm
Housing material	Plastic: Stainless steel
Lens cover material	Plastic
Housing color	Black, Silver
Type of display	LED
Ambient temperature	operation -40 ... 60 °C storage -40 ... 70 °C
Degree of protection	IP 67
Net weight	70 g

Mail Us for your needs in Leuze PUR Cable Receiver Sensor LE328/2N part no: 50122712 with budget-friendly prices. The Main Technical Parameters of LE328/2N, include 328 series, Throughbeam principle , Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 2 Piece(s) digital switching output, Transistor, NPN output, Light switching/Dark switching, 500 Hz frequency, 2000 mm PUR Cable, 4 -wire, 18 mm x 46 mm dimensions, Black, Silver housing color, LED display, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze PUR Cable Receiver Sensor.
