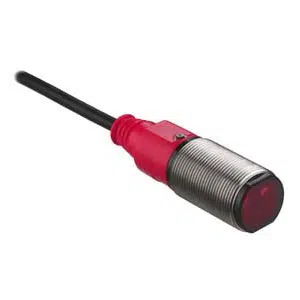

LE328/4P: 50122710 - Leuze Cable 4-wire Conductors Receiver Sensor

SpecValue
Operating PrincipleThroughbeam principle
Device TypeReceiver
Operating Range0 ... 10 m
Switching OutputTransistor, PNP

Leuze Cable 4-wire Conductors Receiver Sensor LE328/4P, 50122710 Technical Specifications:

SpecificationValue
Series328
Operating principleThroughbeam principle
Device typeReceiver
Operating range0 ... 10 m
Power Supply10 ... 30 V, DC, Incl. residual ripple
Open-circuit current0 ... 15 mA
Number of digital switching outputs2 Piece(s)
Switching OutputTransistor, PNP
Switching PrincipleLight switching/Dark switching
Switching frequency500 Hz
Response time1 ms
Readiness delay300 ms
Connection FunctionSignal OUT Voltage supply
Type of Connection2000 mm PUR Cable
Number of conductors or Pins4 -wire
Dimension (W x H x L)18 mm x 46 mm
Housing materialPlastic: Stainless steel
Lens cover materialPlastic
Housing colorBlack, Silver
Type of displayLED
Ambient temperatureoperation -40 ... 60 °C storage -40 ... 70 °C
Degree of protectionIP 67
Net weight70 g
Call us for Leuze Cable 4-wire Conductors Receiver Sensor LE328/4P part no: 50122710 at competitive rates. Technical Attributes of LE328/4P, are 328 series, Throughbeam principle , Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 2 Piece(s) digital switching output, Transistor, PNP output, Light switching/Dark switching, 500 Hz frequency, 2000 mm PUR Cable, 4 -wire, 18 mm x 46 mm dimensions, Black, Silver housing color, LED display, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze Cable 4-wire Conductors Receiver Sensor.
