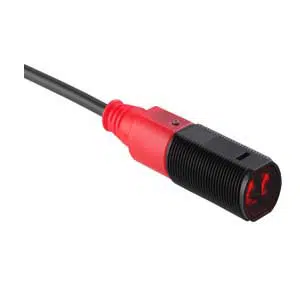

Leuze LE318B/4P Photoelectric Sensor
The Leuze LE318B/4P Photoelectric Sensor (Part No: 50116846 ) offers a 0 ... 10 m operating range, Transistor, PNP output, 2000 mm PUR Cable 4 -wire . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE318B/4P |
Leuze LE318B/4P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 318B Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | 0 ... 10 m |
| Power Supply | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 15 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching Principle | Light switching/Dark switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | 2000 mm PUR Cable |
| Number of conductors or Pins | 4 -wire |
| Dimension (W x H x L) | 18 mm x 46 mm |
| Housing material | Plastic: ABS |
| Lens cover material | Plastic |
| Housing color | Black, Red |
| Type of display | LED |
| Ambient temperature | operation -40 ... 60 Β°C storage -40 ... 70 Β°C |
| Degree of protection | IP 67 |
| Net weight | 70 g |
Obtain a Quote for Leuze Cable Type Receiver Sensor LE318B/4P part no: 50116846 at attractive prices. Core System Specifications of LE318B/4P, are 318B series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 2 Piece(s) digital switching output, Transistor, PNP output, Light switching/Dark switching, 500 Hz frequency, 2000 mm PUR Cable, 4 -wire, 18 mm x 46 mm dimensions, Black, Red housing color, LED
display, IP 67 degree of protection. Elevate Your Project with a Quote for your requirement of Leuze Cable Type Receiver Sensor.
