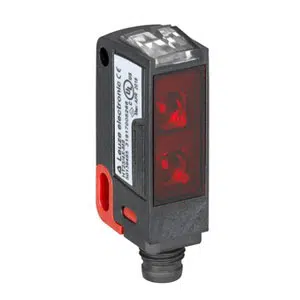

Leuze LE23/2X-M8 Photoelectric Sensor
The Leuze LE23/2X-M8 Photoelectric Sensor (Part No: 50138497 ) offers a 0 ... 8 m operating range, Transistor, NPN output, M8 Connector 4-pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE23/2X-M8 |
Leuze LE23/2X-M8 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 23 Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | 0 ... 8 m |
| Power Supply | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 15 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching Principle | Light switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 4-pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Black, Red |
| Type of display | LED |
| Ambient temperature | operation -40 ... 60 Β°C storage -40 ... 70 Β°C |
| Degree of protection | IP 67 |
| Net weight | 20 g |
Give Us a Call for Leuze 300 ms Readiness Delay Through Beam Receiver Sensor LE23/2X-M8 part no: 50138497 at the lowest pricing. In-depth Technical Analysis of LE23/2X-M8, are 23 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 1 Piece(s) digital switching output, Transistor, NPN output, Light switching
, 500 Hz frequency, M8 Connector, 4-pin, 11.4 mm x 34.2 mm x 18.3 mm
dimensions, Black, Red
housing color, LED display, IP 67 degree of protection. Elevate Your Project with a Quote for your requirement of Leuze 300 ms Readiness Delay Through Beam Receiver Sensor.
