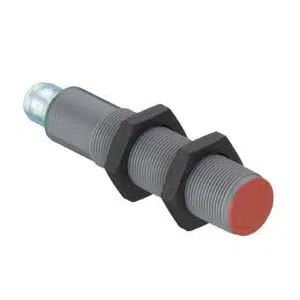

Leuze LCS-2M18P-F08NNO-M12 Proximity Sensor
Leuze LCS-2M18P-F08NNO-M12 proximity sensor provides adjustable 2 to 8 mm capacitive detection with NPN output in M18 housing design. This Leuze proximity sensor operates on 10–30 V DC, supports embedded installation, uses an M12 4-pin connector, and offers IP67 protection with sensitivity adjustment via multiturn potentiometer, positioning it within the Leuze portfolio, under Leuze Proximity Sensor, and as part of the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M18P-F08NNO-M12 |
Leuze LCS-2M18P-F08NNO-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 8 mm |
| Assured switching distance | 6.5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 85 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M18P-F08NNO-M12 Leuze M18 Embedded Capacitive Sensor is a proximity sensor designed for non-contact detection in industrial automation environments. This model supports a 2–8 mm sensing distance, operates on 10–30 V DC, and provides an NPN normally open output. The sensor is part of the Leuze LCS series, which focuses on embedded capacitive sensing solutions for consistent object detection across varying materials in automation systems.
In practical applications, the LCS-2M18P-F08NNO-M12 proximity sensor is used in conveyors, packaging machines, assembly lines, and automated handling systems. Its embedded M18 cylindrical design allows flush mounting in tight mechanical layouts. Stable switching behavior and adjustable sensitivity help maintain reliable detection in environments where dust, vibration, or material variation is present, supporting continuous operation in industrial automation processes.
The Leuze LCS-2M18P-F08NNO-M12 proximity sensor combines defined sensing performance with robust mechanical characteristics. With IP67 protection, plastic housing, and controlled switching frequency, it is suitable for long-term industrial use. As a Leuze M18 Embedded Capacitive Sensor within the LCS series, this model aligns with established proximity sensing standards and supports dependable integration into industrial automation systems.
