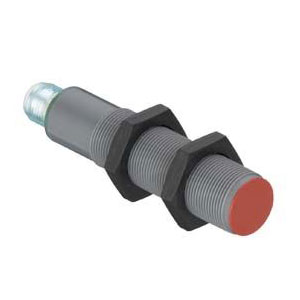

LCS-2M18P-F08PNO-M12: 50136541 - Leuze M18 85mm Capacitive Sensor
Technical Specifications of Leuze LCS-2M18P-F08PNO-M12 50136541:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Sensing Distance | 2 ... 8 mm |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze M18 85mm Capacitive Sensor LCS-2M18P-F08PNO-M12, 50136541 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-2 |
| Sensing Distance | 2 ... 8 mm |
| Assured switching distance | 6.5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 85 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Send Us an Email for Leuze M18 85mm Capacitive Sensor LCS-2M18P-F08PNO-M12 part no: 50136541 with budget-friendly prices. Technical Attributes of LCS-2M18P-F08PNO-M12, 50136541 includes LCS-2 series, 2 ... 8 mm sensing distance, 6.5 mm switching distance, 10 ... 30 V, DC power supply, 200 mA operating current, 1 Piece(s) digital switching output, Transistor, PNP, NO (normally open) output, 100 Hz switching frequency, M12 Connector, 4 -pin, Cylindrical, 18 mm x 85 mm dimension, Embedded, Plastic, 1 Piece(s) LEDs, Multiturn potentiometer operational controls, IP 67 degree of protection. Now's the Time to Secure Quote for your requirement of Leuze M18 85mm Capacitive Sensor. Rest assured, our pricing and support outshine other Suppliers.
