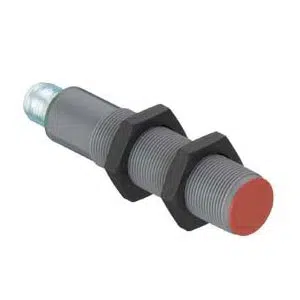

Leuze LCS-2M18P-F08NNC-M12 Proximity Sensor
Leuze LCS-2M18P-F08NNC-M12 proximity sensor delivers 6.5 mm assured capacitive switching with NPN NC output in embedded M18 housing design. This Leuze proximity sensor operates on 10–30 V DC, supports embedded installation, uses an M12 4-pin connector, and provides IP67 protection with adjustable switching distance via multiturn potentiometer, aligning it with the Leuze brand range, classified under Leuze Proximity Sensor, and included in the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M18P-F08NNC-M12 |
Leuze LCS-2M18P-F08NNC-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 8 mm |
| Assured switching distance | 6.5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 85 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M18P-F08NNC-M12 Leuze 6.5mm Switching Distance Sensor is a proximity sensor designed for capacitive object detection in industrial automation systems. This model offers a 6.5 mm assured switching distance, operates on 10–30 V DC, and uses an NPN normally closed output. It belongs to the LCS series and is intended for embedded installation where stable sensing and defined electrical behavior are required in industrial environments.
In application, the LCS-2M18P-F08NNC-M12 proximity sensor is commonly integrated into conveyors, packaging machines, automated assembly stations, and material handling equipment. The cylindrical M18 design allows flush mounting in compact layouts, while adjustable sensitivity supports consistent detection across varying materials. Reliable switching at defined frequencies helps maintain predictable control signals in continuous industrial automation operations.
The LCS-2M18P-F08NNC-M12 proximity sensor reflects Leuze design practices focused on mechanical stability and electrical consistency. With IP67 protection, controlled switching characteristics, and defined operating currents, it supports dependable long-term use. As a Leuze 6.5mm Switching Distance Sensor within the LCS series, this model is suitable for industrial automation systems requiring embedded capacitive sensing with controlled normally closed output behavior.
