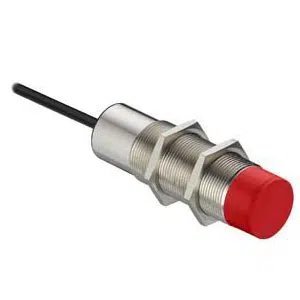

Leuze LCS-2M18B-N15PNO-K020V Proximity Sensor
Leuze LCS-2M18B-N15PNO-K020V proximity sensor delivers 2–15 mm capacitive detection with 12.1 mm assured switching distance. This Leuze 70mm Length Capacitive Sensor operates on 10–30 V DC, uses a PNP normally open output, supports non-embedded installation, and provides IP67 protection with sensitivity adjustment via multiturn potentiometer. It belongs to the Leuze portfolio, is categorized under Leuze Proximity Sensor, and forms part of the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M18B-N15PNO-K020V |
Leuze LCS-2M18B-N15PNO-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 12.1 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 70 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M18B-N15PNO-K020V Leuze 70mm Length Capacitive Sensor is a proximity sensor designed for consistent capacitive detection in industrial automation environments. This model supports a 2–15 mm sensing distance, a 12.1 mm assured switching distance, and a PNP normally open transistor output operating on 10–30 V DC. It belongs to the LCS series and is used where stable non-contact detection is required.
In practical applications, the LCS-2M18B-N15PNO-K020V proximity sensor is used in conveyors, packaging machines, automated assembly lines, and material handling systems. The M18 cylindrical metal housing enables secure mounting, while non-embedded installation supports flexible positioning. Adjustable sensitivity allows reliable operation across different materials and changing process conditions.
The LCS-2M18B-N15PNO-K020V proximity sensor reflects Leuze standards for durability and electrical reliability. With IP67 protection, defined operating current limits, and a wide ambient temperature range, it supports continuous industrial operation. As part of the Leuze LCS capacitive sensor series, this model is suitable for dependable sensing tasks in industrial automation systems.
