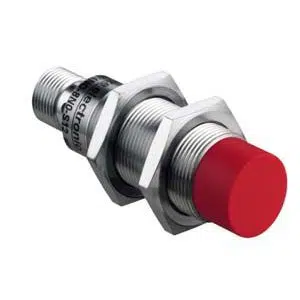

LCS-2M18B-N15NNO-M12: 50136595 - Leuze M18 NPN Non-embedded Sensor
Technical Specifications of Leuze LCS-2M18B-N15NNO-M12 50136595:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Sensing Distance | 2 ... 15 mm |
| Switching Output | Transistor, NPN |
| Switching Principle | NO (normally open) |
Leuze M18 NPN Non-embedded Sensor LCS-2M18B-N15NNO-M12, 50136595 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-2 |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 12.1 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 85 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Send Us an Email for Leuze M18 NPN Non-embedded Sensor LCS-2M18B-N15NNO-M12 part no: 50136595 with budget-friendly prices. Technical Attributes of LCS-2M18B-N15NNO-M12, 50136595 includes LCS-2 series, 2 ... 15 mm sensing distance, 12.1 mm switching distance, 10 ... 30 V, DC power supply, 200 mA operating current, 1 Piece(s) digital switching output, Transistor, NPN, NO (normally open) output, 100 Hz switching frequency, M12 Connector, 4 -pin, Cylindrical, 18 mm x 85 mm dimension, Non-embedded, Metal, 1 Piece(s) LEDs, Multiturn potentiometer operational controls, IP 67 degree of protection. Now's the Time to Secure Quote for your requirement of Leuze M18 NPN Non-embedded Sensor. Rest assured, our pricing and support outshine other Suppliers.
