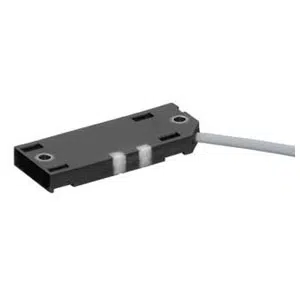

Leuze LCS-1Q54P-F10NNC-K020P Proximity Sensor
Leuze LCS-1Q54P-F10NNC-K020P proximity sensor provides 1–10 mm sensing distance, NPN NC output, 10–30 V DC supply voltage embedded installation. This LCS-1Q54P-F10NNC-K020P Leuze 10mm Cubic Capacitive Sensor from Leuze is a Proximity Sensor within the LCS-1 Series. It supports 100 Hz switching frequency, adjustable sensitivity via multiturn potentiometer, PUR cable connection, cubic housing, and IP67 protection.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1Q54P-F10NNC-K020P |
Leuze LCS-1Q54P-F10NNC-K020P Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 10 mm |
| Assured switching distance | - |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cubic |
| Thread size | - |
| Dimension (Ø x L) | 54 mm x 20.3 mm x 5.5 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (11 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | 40 g |
The LCS-1Q54P-F10NNC-K020P Leuze 10mm Cubic Capacitive Sensor is a proximity sensor designed for controlled capacitive detection in industrial automation. The LCS-1Q54P-F10NNC-K020P operates with a 1–10 mm sensing distance, NPN normally closed output, 10–30 V DC supply voltage, and 100 Hz switching frequency. It belongs to the LCS series and is applied where compact, embedded capacitive sensing is required.
This proximity sensor is used in conveyors, packaging equipment, automated assembly systems, and material handling lines. Its cubic embedded design supports stable mounting, while adjustable sensitivity enables consistent detection across varying materials. Defined switching behavior ensures reliable signal transmission to control systems in industrial environments.
The Leuze LCS-1Q54P-F10NNC-K020P proximity sensor delivers predictable electrical performance and mechanical stability. Clear sensing characteristics, adjustable switching distance, and IP67 protection support dependable operation under industrial conditions. As part of the Leuze LCS-series, this model is suitable for applications requiring precise, repeatable capacitive proximity sensing.
