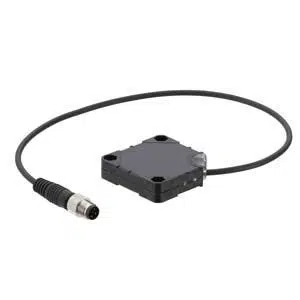

Leuze LCS-1Q40P-F20PNO-K003PM08 Proximity Sensor
Leuze LCS-1Q40P-F20PNO-K003PM08 proximity sensor delivers 1β20 mm sensing distance, PNP output, 10β30 V DC supply for industrial automation use. This Leuze 20mm PNP Capacitive Sensor from Leuze is categorized as a Proximity Sensor and belongs to the LCS-1 Series. It features cubic embedded installation, adjustable sensitivity via multiturn potentiometer, 100 Hz switching frequency, PUR connector cable, and IP67 environmental protection.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1Q40P-F20PNO-K003PM08 |
Leuze LCS-1Q40P-F20PNO-K003PM08 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 20 mm |
| Assured switching distance | 20 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Connector 300 mm length |
| No. of pins | 3 -pin |
| Design | Cubic |
| Thread size | - |
| Dimension (Γ x L) | 40 mm x 40 mm x 10 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | Oparation:-5 ... 85 Β°C Storage:-25 ... 85 Β°C |
| Degree of protection | IP 67 |
| Weight | 33 g |
The LCS-1Q40P-F20PNO-K003PM08 Leuze 20mm PNP Capacitive Sensor is a proximity sensor designed for industrial automation detection tasks. The LCS-1Q40P-F20PNO-K003PM08 operates with a 1β20 mm sensing distance, PNP transistor output, 10β30 V DC supply, and 100 mA rated operating current. It is part of the LCS series and supports non-contact sensing in compact embedded applications.
This proximity sensor is commonly used in conveyors, packaging systems, automated assembly lines, and material handling equipment. Its cubic design allows stable embedded mounting where space constraints exist, while the PUR connector ensures secure signal transmission. Adjustable sensitivity and normally open switching support reliable detection of varied materials in industrial environments.
The Leuze LCS-1Q40P-F20PNO-K003PM08 proximity sensor provides consistent electrical behavior and mechanical stability under industrial conditions. Defined sensing distance, switching characteristics, and environmental protection enable predictable system integration. As a member of the Leuze LCS-series, this model is suitable for applications requiring dependable capacitive proximity sensing with clear operational limits.
