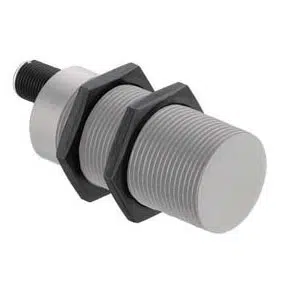

Leuze LCS-1M30P-F15NNC-K020P Proximity Sensor
Leuze LCS-1M30P-F15NNC-K020P proximity sensor provides 2–15 mm sensing distance, NPN NC output, and 10–30 V DC supply industrial applications. This Leuze Plastic Capacitive Sensor LCS-1M30P-F15NNC-K020P from Leuze belongs to the Proximity Sensor category and the LCS-1 Series. It supports embedded installation, cylindrical M30 housing, adjustable sensitivity using a multiturn potentiometer, PUR cable connection, and IP67 protection.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30P-F15NNC-K020P |
Leuze LCS-1M30P-F15NNC-K020P Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 15 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 66.5 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 100 g |
The Leuze Plastic Capacitive Sensor LCS-1M30P-F15NNC-K020P is a proximity sensor designed for industrial automation environments. The LCS-1M30P-F15NNC-K020P operates with a 2–15 mm sensing distance, NPN normally closed output, 100 mA rated operating current, and 10–30 V DC supply. It belongs to the LCS series and is used for stable non-contact detection in control systems.
This proximity sensor is applied in conveyors, packaging machines, automated assembly lines, and material handling systems. The cylindrical M30 threaded design allows embedded mounting, while the plastic housing and PUR cable support consistent signal transmission. Adjustable sensitivity helps maintain reliable detection under varying installation and environmental conditions.
The Leuze LCS-1M30P-F15NNC-K020P proximity sensor delivers defined electrical behavior and environmental resistance for continuous industrial operation. Its sensing range, switching principle, and mechanical dimensions support predictable integration into automation architectures. As part of the Leuze LCS-series, this model is suitable for industrial use where dependable capacitive sensing performance is required.
