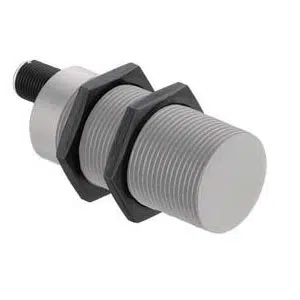

Leuze LCS-1M30P-F15PNO-K020P Proximity Sensor
Leuze LCS-1M30P-F15PNO-K020P proximity sensor provides 2β15 mm sensing distance, PNP NO output, and 10β30 V DC supply operation range. This Leuze Normally Open Capacitive Sensor LCS-1M30P-F15PNO-K020P from Leuze belongs to the Proximity Sensor category and the LCS-1 Series. It supports embedded installation, cylindrical M30 housing, adjustable sensitivity, and IP67 protection for industrial automation environments.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30P-F15PNO-K020P |
Leuze LCS-1M30P-F15PNO-K020P Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 15 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Γ x L) | 30 mm x 66.5 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (12 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 Β°C |
| Degree of protection | IP 67 |
| Weight | 100 g |
The Leuze Normally Open Capacitive Sensor LCS-1M30P-F15PNO-K020P is a proximity sensor designed for non-contact detection in industrial automation systems. The LCS-1M30P-F15PNO-K020P operates with a 2β15 mm sensing distance, PNP normally open output, 100 mA rated operating current, and 10β30 V DC supply. It belongs to the LCS series and is used in embedded mounting applications across industrial machinery.
This proximity sensor is applied in conveyors, packaging equipment, automated assembly lines, and material handling systems. The cylindrical M30 threaded design supports stable mechanical mounting, while the PUR cable connection ensures reliable signal transmission. Adjustable sensitivity enables consistent switching behavior under varying materials and environmental conditions.
The Leuze LCS-1M30P-F15PNO-K020P proximity sensor offers defined electrical performance and environmental protection for continuous industrial use. Its sensing range, switching principle, and housing dimensions support predictable integration. As a Leuze LCS-series device, this model is suitable for industrial automation applications requiring reliable capacitive sensing.
