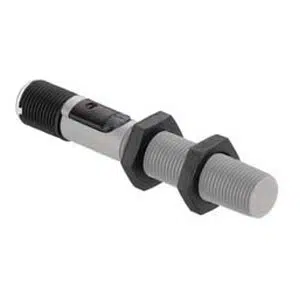

Leuze LCS-1M12P-F04PNO-M12 Proximity Sensor
The Leuze LCS-1M12P-F04PNO-M12 proximity sensor provides 1 to 4 mm sensing distance, NPN NO output, 10β30 V DC supply. This Leuze 12mm PNP Capacitive Sensor from the Leuze Proximity Sensor range belongs to the LCS-1 Series and supports embedded installation, cylindrical M12 design, adjustable sensitivity via multiturn potentiometer, IP67 protection, and stable normally open switching for industrial automation.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M12P-F04PNO-M12 |
Leuze LCS-1M12P-F04PNO-M12 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 4 mm |
| Assured switching distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Γ x L) | 12 mm x 75 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (12 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 Β°C |
| Degree of protection | IP 67 |
| Weight | 13 g |
The LCS-1M12P-F04PNO-M12 Leuze 12mm PNP Capacitive Sensor is a proximity sensor designed for short-range capacitive detection in industrial automation systems. The LCS-1M12P-F04PNO-M12 operates with a 4 mm assured switching distance, NPN normally open output, 100 Hz switching frequency, and IP67 degree of protection. It belongs to the Leuze LCS series and is used where compact sensor dimensions and reliable signal output are required.
This proximity sensor is commonly applied in conveyors, packaging equipment, automated assembly stations, and material handling systems. Its cylindrical 12 mm housing enables embedded mounting in confined spaces, while the M12 connector supports standardized wiring. Adjustable sensitivity allows stable detection across different materials, helping maintain consistent switching performance in routine industrial operating conditions.
The Leuze LCS-1M12P-F04PNO-M12 proximity sensor combines defined sensing behavior, lightweight construction, and consistent electrical performance. With its wide operating voltage range, resistance to dust and moisture, and suitability for continuous operation, it integrates reliably into industrial control systems. As part of the Leuze LCS series, this model reflects dependable sensor design aligned with industrial automation requirements.
