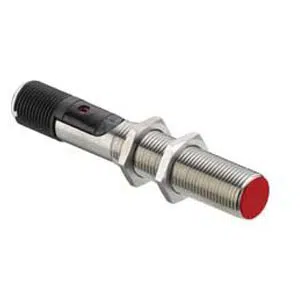

LCS-1M12M-F04PNC-K020P: 50135693 - Leuze PUR 3-wire Cylindrical Sensor
Technical Specifications of Leuze LCS-1M12M-F04PNC-K020P 50135693:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Sensing Distance | 1 ... 4 mm |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
Leuze PUR 3-wire Cylindrical Sensor LCS-1M12M-F04PNC-K020P, 50135693 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-1 |
| Sensing Distance | 1 ... 4 mm |
| Assured switching distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 61 mm |
| Type of installation | Embedded |
| Housing material | Metal, Stainless steel |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 59 g |
Obtain a Quote for Leuze PUR 3-wire Cylindrical Sensor LCS-1M12M-F04PNC-K020P part no: 50135693 at economical prices. Specifications Overview for LCS-1M12M-F04PNC-K020P, 50135693 reveals LCS-1 series, 1 ... 4 mm sensing distance, 4 mm switching distance, 10 ... 30 V, DC power supply, 100 mA operating current, 1 Piece(s) digital switching output, Transistor, PNP, NC (normally closed) output, 100 Hz switching frequency, PUR,Cable 2,000 mm Length, 3 -wire, Cylindrical, 12 mm x 61 mm dimension, Embedded, Metal, Stainless steel, 2 Piece(s) LEDs, Multiturn potentiometer (20 turns) operational controls, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze PUR 3-wire Cylindrical Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors..
