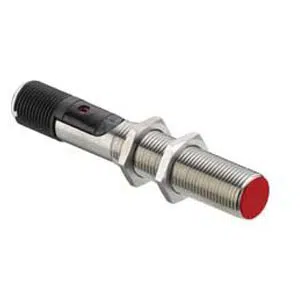

Leuze LCS-1M12M-N08PNC-M12 Proximity Sensor
Leuze LCS-1M12M-N08PNC-M12 proximity sensor offers 1–8 mm sensing distance, PNP normally closed output, 10–30 V DC supply voltage range. This LCS-1M12M-N08PNC-M12 Leuze M12 Non-embedded Sensor from Leuze is a Proximity Sensor within the LCS-1 Series. It supports 100 Hz switching frequency, stainless steel M12 housing, adjustable sensitivity, and IP67 protection for industrial environments.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M12M-N08PNC-M12 |
Leuze LCS-1M12M-N08PNC-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 8 mm |
| Assured switching distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 75 mm |
| Type of installation | Non-embedded |
| Housing material | Metal Stainless steel |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (12 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 25 g |
The LCS-1M12M-N08PNC-M12 Leuze M12 Non-embedded Sensor is a capacitive proximity sensor designed for precise detection tasks in industrial automation. The LCS-1M12M-N08PNC-M12 operates with a 1–8 mm sensing distance, PNP normally closed output, 10–30 V DC supply voltage, and 100 Hz switching frequency. It belongs to the LCS series and is used where compact cylindrical sensors with stable electrical characteristics are required.
This proximity sensor is applied in conveyors, packaging equipment, automated assembly lines, and material handling systems. Its non-embedded M12 cylindrical construction allows flexible mounting, while capacitive sensing enables reliable detection of different materials. Adjustable sensitivity supports consistent switching performance across changing operating conditions.
The Leuze LCS-1M12M-N08PNC-M12 proximity sensor combines defined sensing behavior with durable construction. Stainless steel housing, predictable switching output, and IP67 protection support long-term operation in industrial environments. As part of the Leuze LCS series, this model is suitable for applications requiring repeatable, controlled capacitive proximity sensing.
