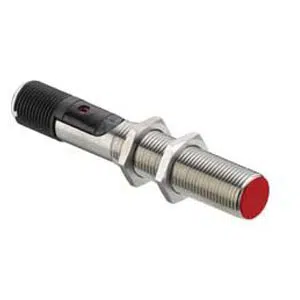

Leuze LCS-1M12M-F04NNO-K020P Proximity Sensor
The Leuze LCS-1M12M-F04NNO-K020P proximity sensor provides 1 to 4 mm sensing distance, NPN NO output, 10β30 V DC supply. This Leuze 61mm Length Capacitive Sensor from the Leuze Proximity Sensor range belongs to the LCS-1 Series and supports embedded installation, PUR 2 m cable connection, adjustable sensitivity, IP67 protection, and stable normally open switching for industrial automation.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M12M-F04NNO-K020P |
Leuze LCS-1M12M-F04NNO-K020P Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 4 mm |
| Assured switching distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Γ x L) | 12 mm x 61 mm |
| Type of installation | Embedded |
| Housing material | Metal, Stainless steel |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 Β°C |
| Degree of protection | IP 67 |
| Weight | 59 g |
The LCS-1M12M-F04NNO-K020P Leuze 61mm Length Capacitive Sensor is a proximity sensor designed for short-range detection tasks in industrial automation systems. The LCS-1M12M-F04NNO-K020P operates with a 4 mm assured switching distance, NPN normally open output, 100 Hz switching frequency, and IP67 degree of protection. It is part of the Leuze LCS series and is used where compact sensing and direct cable wiring are required.
This proximity sensor is commonly used in conveyors, packaging equipment, automated assembly lines, and material handling systems. The PUR 2 m cable allows flexible installation without connectors, supporting stable electrical connections in compact machine layouts. Its cylindrical stainless-steel housing supports embedded mounting, while adjustable sensitivity helps maintain reliable detection across varying materials and operating conditions.
The Leuze LCS-1M12M-F04NNO-K020P proximity sensor combines defined sensing behavior, durable mechanical construction, and consistent electrical output. With its wide operating voltage range, resistance to dust and moisture, and suitability for continuous operation, it integrates reliably into industrial control systems. As part of the Leuze LCS series, this model reflects dependable sensor design aligned with industrial automation requirements.
