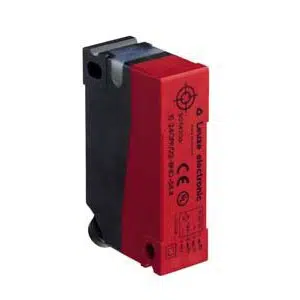

Leuze IS 240PP/4NO-4E0-S8.3 Proximity Sensor
The Leuze IS 240PP/4NO-4E0-S8.3 Proximity Sensor (Part No: ) offers a 4 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, M8 Connector connection, 3 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 240PP/4NO-4E0-S8.3 |
Leuze IS 240PP/4NO-4E0-S8.3 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 240 Series |
| Sensing Distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 250 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| Switching frequency, max. | 1,400 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 3 -pin |
| Design | Cubic |
| Dimension (Γ x L) | 12 mm x 40 mm x 26 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polyamide (PA 66) |
| Housing color | Black, Red, RAL 3000 |
| Standard measuring plate | 12 x 12 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze 4mm Sensing Cubic Inductive Switch IS 240PP/4NO-4E0-S8.3 part no: 50117797 at unbeatable prices. Detailed Specifications of IS 240PP/4NO-4E0-S8.3, 50117797 feature240 series, 4 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 250 mA max. current, Transistor, PNP , NO (normally open) output,1,400 Hz, 1 Piece(s) Connection, M8 Connector, 3 -pin, Cubic, 12 mm x 40 mm x 26 mm dimentions, Embedded, Plastic, Polyamide (PA 66), 1 Piece(s) LEDs, Black, Red, RAL 3000 color, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 4mm Sensing Cubic Inductive Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
