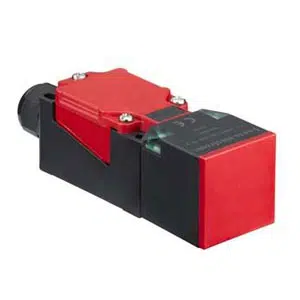

Leuze IS 144 PP/4NC-40N-TB.4 Proximity Sensor
The Leuze IS 144 PP/4NC-40N-TB.4 Proximity Sensor (Part No: ) offers a 40 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NC (normally closed) output, Terminal connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 144 PP/4NC-40N-TB.4 |
Leuze IS 144 PP/4NC-40N-TB.4 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 144 Series |
| Sensing Distance | 40 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | Terminal |
| Number of conductors or Pins | 4 -pin |
| Design | Cubic |
| Dimension (Γ x L) | 115 mm x 40 mm x 140 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Black Red, RAL 3000 |
| Standard measuring plate | 120 x 120 mmΒ², Fe360 |
| Number of LEDs | 2 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Get A Quote for Leuze 40mm Sensing Inductive Switch IS 144 PP/4NC-40N-TB.4 part no: 50130019 at the best price. Here are the brief Technical Specifications of IS 144 PP/4NC-40N-TB.4, 50133810 are 144 series, 40 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NC (normally closed) , 100 Hz, 1 Piece(s) Connection, Terminal, 4 -pin, Cubic, 115 mm x 40 mm x 140 mm dimensions, Non-embedded, Plastic, Plastic, Polybutylene (PBT), Black
Red, RAL 3000 color, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze 40mm Sensing Inductive Switch. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
