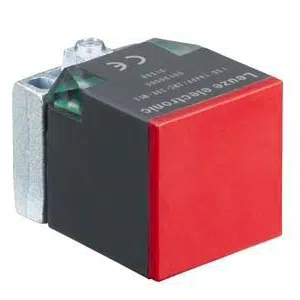

Leuze ISS 144 PP/4NO-20E-M12 Proximity Sensor
The Leuze ISS 144 PP/4NO-20E-M12 Proximity Sensor (Part No: ) offers a 20 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 144 PP/4NO-20E-M12 |
Leuze ISS 144 PP/4NO-20E-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | 144 Series |
| Sensing Distance | 20 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cubic |
| Dimension (Ø x L) | 54 mm x 40 mm x 65 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Black Red, RAL 3000 |
| Standard measuring plate | 60 x 60 mm², Fe360 |
| Number of LEDs | 2 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Call us forLeuze 20mm Sensing Inductive Switch ISS 144 PP/4NO-20E-M12 part no: 50130006 at the best rates. The Main Technical Parameters of ISS 144 PP/4NO-20E-M12, 50130006 feature 144 series, 20 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP, NO (normally open) , 300 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cubic, 54 mm x 40 mm x 65 mm dimensions, Embedded, Plastic, Plastic, Polybutylene (PBT), Black Red, RAL 3000 color, IP 67 degree of protection. at the best rates of Leuze 20mm Sensing Inductive Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
