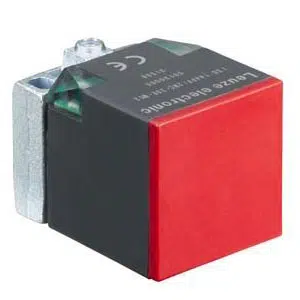

Leuze ISS 144 PP/4NC-20E-M12 Proximity Sensor
The Leuze ISS 144 PP/4NC-20E-M12 Proximity Sensor (Part No: ) offers a 20 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NC (normally closed) output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 144 PP/4NC-20E-M12 |
Leuze ISS 144 PP/4NC-20E-M12 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 144 Series |
| Sensing Distance | 20 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cubic |
| Dimension (Γ x L) | 54 mm x 40 mm x 65 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Black Red, RAL 3000 |
| Standard measuring plate | 60 x 60 mmΒ², Fe360 |
| Number of LEDs | 2 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze PNP NC Cubic Inductive Sensor ISS 144 PP/4NC-20E-M12 part no: 50130007 at unbeatable prices. The Main Technical Parameters of ISS 144 PP/4NC-20E-M12, 50130007 feature 144 series, 20 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NC (normally closed) , 300 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cubic, 54 mm x 40 mm x 65 mm dimentions, Embedded, Plastic, Plastic, Polybutylene (PBT), Black Red, RAL 3000 color, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze PNP NC Cubic Inductive Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
