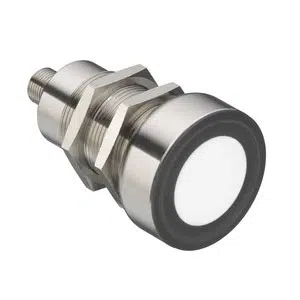

Leuze HTU230-6000/L4-M12 Ultrasonic Sensor
Leuze HTU230-6000/L4-M12 Ultrasonic Sensor provides 0.6β6 m operating range, 80 kHz ultrasonic frequency, and M30 cylindrical metal housing. This Leuze Ultrasonic Sensor belongs to the 412B Series and features push-pull transistor output, 18β30 V DC supply, IP67 protection, 1.0 mm resolution, 14Β° opening angle, 2 Hz switching frequency, 250 ms response time, 4-pin M12 connector, metal housing, and operating temperature from 25 to 70 Β°C.
| Brand | Leuze |
| Product Type | Ultrasonic Sensor |
| Product | HTU230-6000/L4-M12 |
Leuze HTU230-6000/L4-M12 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M30 x 1.5 mm |
| Dimension | 45.5 mm x 78 mm |
| Operating range | 0.6 ... 6 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 80 kHz |
| Opening angle | 14 Β° |
| Adjustment range | 600 ... 6,000 mm |
| Resolution | 1.0 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Number of Connections | 1 Piece(s) |
| Switching voltage | - |
| Switching output 1 | Transistor, Push-pull |
| Switching frequency | 2 Hz |
| Response time | 250 ms |
| Connection 1 Function | Signal OUT Teach input Voltage supply |
| Type of connection | Connector |
| No. of Pin | 4 -pin |
| Housing material | Metal |
| Ambient temperature, operation | 25 ... 70 Β°C |
| Ambient temperature, storage | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
The HTU230-6000/L4-M12 Leuze 80 kHz Ultrasonic Frequency Sensor is a Leuze Ultrasonic Sensor designed for long-range distance detection in industrial automation. The HTU230-6000/L4-M12 delivers a 0.6β6 m operating range, operates at 80 kHz ultrasonic frequency, and provides 1.0 mm resolution for controlled measurement. As part of the 412B Series, it integrates push-pull transistor output within a durable M30 metal housing.
In material handling systems, storage automation, and conveyor monitoring, the HTU230-6000/L4-M12 Ultrasonic Sensor enables reliable object detection over extended distances. The 14Β° opening angle supports broad sensing coverage in large setups. With IP67 protection and 18β30 V DC supply, it aligns with industrial electrical and environmental requirements in manufacturing plants.
The HTU230-6000/L4-M12 from Leuze reinforces the ultrasonic sensor platform for structured long-distance detection applications. Its defined switching frequency, response time, and connector-based wiring simplify integration into PLC-controlled systems. Leuze ultrasonic sensor solutions are implemented in Indian industrial environments where dependable long-range sensing and stable switching signals are required.
