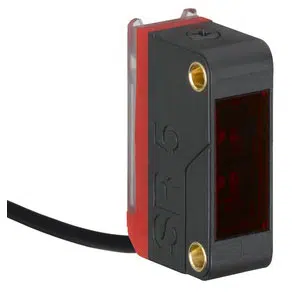

Leuze HT5B.XL/2 Photoelectric Sensor
Technical Specifications of HT5B.XL/2 50148010:
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT5B.XL/2 |
Leuze HT5B.XL/2 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.002 ... 0.1 m |
| Beam path | Divergent |
| Light source | LED |
| Wavelength | - |
| Type of light spot geometry | Rectangular |
| Focal distance | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output | Transistor, NPN |
| Switching principle | Light switching (dark switching by reversing polarity of UB) |
| Switching frequency | 1,000 Hz |
| Response time | - |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mmΒ² |
| Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Give Us a Call for HT5B.XL/2 50148010 at affordable rates. Specifications Overview for HT5B.XL/2 are Cubic, Design Rectangular, 11 mm x 32.4 mm x 20 mm Dimension, Divergent Light source, Transistor, NPN Switching Outputs, Light switching (dark switching by reversing polarity of UB) Switching principle, Cable, PVC Sheathing material, Plastic / PMMA, Plastic Housing material, IP 67 degree of protection. Initiate Your Journey with a Quote for your requirement of Leuze 0.002 to 0.1 m Operating range Diffuse sensors.Our commitment to better pricing and exceptional support sets us apart from other Dealers & Distributors.
