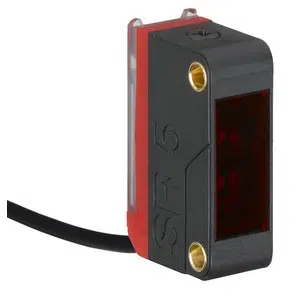

Leuze HT5B.XL/4 | 50148011
Technical Specifications of HT5B.XL/4 50148011:
| Spec | Value |
|---|---|
| Design | Cubic |
| Sensing Distance | 0.002 ... 0.1 m |
| Light Source | LED |
| Wavelength | - |
Leuze Detection of objects with openings Diffuse sensors HT5B.XL/4 - 50148011 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.002 ... 0.1 m |
| Beam path | Divergent |
| Light source | LED |
| Wavelength | - |
| Type of light spot geometry | Rectangular |
| Light spot size [at sensor distance] | |
| Focal distance | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output | Transistor, PNP |
| Switching principle | Light switching (dark switching by reversing polarity of UB) |
| Switching frequency | 1,000 Hz |
| Response time | - |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mm² |
| Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Obtain a Quote for HT5B.XL/4 50148011 at economical prices. Specifications Overview for HT5B.XL/4 are Cubic, Design Rectangular, 11 mm x 32.4 mm x 20 mm Dimension, Divergent Light source, Transistor, PNP Switching Outputs, Light switching (dark switching by reversing polarity of UB) Switching principle, Cable, PVC Sheathing material, Plastic / PMMA, Plastic Housing material, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze Detection of objects with openings Diffuse sensors. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
