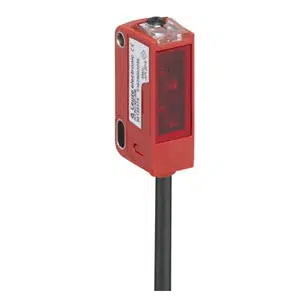

Leuze HT3CI/4P Photoelectric Sensor
The Leuze HT3CI/4P Photoelectric Sensor (Part No: 50135360 ) offers a Cubic design, 0.005 ... 0.6 m sensing range, Transistor, PNP output, PUR Cable, 200 mm cable length. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the HT Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT3CI/4P |
Leuze HT3CI/4P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.005 ... 0.6 m |
| Beam path | Focused |
| Light source | LED, Infrared |
| Wavelength | 880 nm |
| Type of light spot geometry | - |
| Light spot size [at sensor distance] | square |
| Measurement range | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mmΒ² |
| Thread size | - |
| Type | - |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67/IP 69K |
Talk to Our Engineer for HT3CI/4P 50135360 with exclusive offers. Core System Specifications of HT3CI/4P are Cubic, Design Diffuse reflection principle with background suppression, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Infrared Light source, Transistor, PNP Switching Outputs1, Light switching Switching principle, Cable, PUR Sheathing material, -, Plastic Housing material, IP 67/IP 69K degree of protection. Don't Miss Out on a Quote for your requirement of Leuze 880 nm Wavelength Diffuse sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
