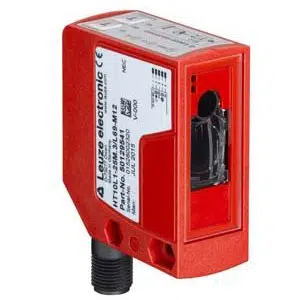

Leuze HT10L1.3/L6X-M12 Photoelectric Sensor
Technical Specifications of Leuze HT10L1.3/L6X-M12 50128388:
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT10L1.3/L6X-M12 |
Leuze HT10L1.3/L6X-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | 2 independent switching outputs |
| Sensing Distance | 0.05 ... 8 m |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 658 nm |
| Type of light spot geometry | Rectangular |
| Light spot size [at sensor distance] | 7 mm x 7 mm [7,000 mm] |
| Supply voltage UB | 18 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching frequency | 40 Hz |
| Response time | 50 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 25 mm x 65 mm x 55 mm |
| Housing material | Plastic |
| Plastic housing | - |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 50 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Send Us an Email for HT10L1.3/L6X-M12 part no.50128388 awith the special pricing. Engineering Specifications of HT10L1.3/L6X-M12 are Cubic, Design Diffuse reflection principle with background suppression, 25 mm x 65 mm x 55 mm Dimension, Laser, Red Light source, Transistor, Push-pull Switching Outputs1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 18 ... 30 V, DC Supply voltage UB, 0.05 ... 8 m Sensing Distance, Connector Type of connection, Plastic Housing material, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze M12 connector, A-coded, 5-pin Diffuse Sensor. We excel in offering more cost-effective and supportive solutions than other Dealers.
