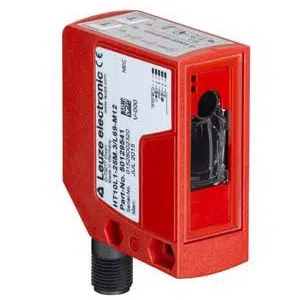

Leuze HT10L1-25M.3/L69-M12 | 50129541
Technical Specifications of Leuze HT10L1-25M.3/L69-M12 50129541:
| Spec | Value |
|---|---|
| Design | Cubic |
| Sensing Distance | 0.1 ... 25 m |
| Light Source | Laser, Red |
| Wavelength | 658 nm |
Leuze 0.1-25 m Operating range Diffuse Sensor HT10L1-25M.3/L69-M12 - 50129541 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | 2 independent switching outputs Deactivation input |
| Sensing Distance | 0.1 ... 25 m |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 658 nm |
| Type of light spot geometry | Rectangular |
| Light spot size [at sensor distance] | 25 mm x 25 mm [25,000 mm] |
| Measurement range | |
| Supply voltage UB | 18 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching frequency | 40 Hz |
| Response time | 50 ms |
| Function | Deactivation input Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 25 mm x 65 mm x 55 mm |
| Housing material | Plastic |
| Plastic housing | - |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 50 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Talk to Our Engineer for HT10L1-25M.3/L69-M12 50129541 with exclusive offers. Core System Specifications of HT10L1-25M.3/L69-M12 are Cubic, Design Diffuse reflection principle with background suppression, 25 mm x 65 mm x 55 mm Dimension, Laser, Red Light source, Transistor, Push-pull Switching Outputs1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 18 ... 30 V, DC Supply voltage UB, 0.1 ... 25 m Sensing Distance, Connector Type of connection, Plastic Housing material, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze 0.1-25 m Operating range Diffuse Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
