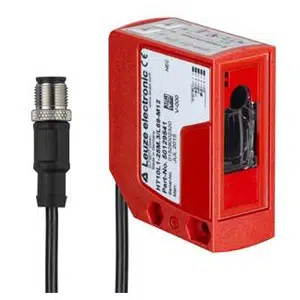

Leuze HT10L1-25M.3/L69,200-M12 Photoelectric Sensor
The Leuze HT10L1-25M.3/L69,200-M12 Photoelectric Sensor (Part No: 50129552 ) offers a Cubic design, 0.1 ... 25 m sensing range, Transistor, Push-pull output, PUR Cable with connector, 200 mm cable length. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the HT Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT10L1-25M.3/L69,200-M12 |
Leuze HT10L1-25M.3/L69,200-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | 2 independent switching outputs Deactivation input |
| Sensing Distance | 0.1 ... 25 m |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 658 nm |
| Type of light spot geometry | Rectangular |
| Light spot size [at sensor distance] | 25 mm x 25 mm [25,000 mm] |
| Measurement range | - |
| Supply voltage UB | 18 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching frequency | 40 Hz |
| Response time | 50 ms |
| Function | Deactivation input Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.14 mmΒ² |
| Thread size | M12 |
| Type | Male |
| Dimension (W x H x L) | 25 mm x 65 mm x 55 mm |
| Housing material | Plastic |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 50 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Send Us an Email for HT10L1-25M.3/L69,200-M12 part no.50129552 awith the special pricing. Engineering Specifications of HT10L1-25M.3/L69,200-M12 are Cubic, Design Diffuse reflection principle with background suppression, 25 mm x 65 mm x 55 mm Dimension, Laser, Red Light source, Transistor, Push-pull Switching Outputs1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 18 ... 30 V, DC Supply voltage UB, 0.1 ... 25 m Sensing Distance, Cable with connector Type of connection, Plastic Housing material, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze 25 mmx25 mm (25,000 mm) light spot size Diffuse Sensor. We excel in offering more cost-effective and supportive solutions than other Dealers.
