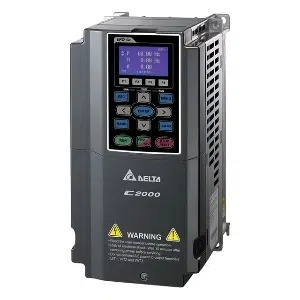

Delta VFD150C43A Variable Frequency Drive
The Delta VFD150C43A Variable Frequency Drive is designed for controlled motor operation, supporting 15 kW and 20 HP applications using a stable 460V, Three-phase AC 380 V ~ 480 V input at 50 / 60Hz. It delivers a rated 32 A output current with an 25 kVA output capacity, enabling dependable speed and torque adjustment across industrial equipment. The drive uses a Fan Cooling thermal method and features an IP20 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta C2000 Series.
| Brand | Delta |
| Product Type | VFD |
| Model Number | VFD150C43A |
Delta VFD150C43A Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-phase AC 380 V ~ 480 V ( -15%~+10%), 50/60Hz |
| Output Capacity (kVA)-NORMAL DUTY | 25 kVA |
| Output Current (A) -NORMAL DUTY | 32 A |
| Applicable Motor Output (kW)-NORMAL DUTY | 15 kW |
| Applicable Motor Output (HP)-NORMAL DUTY | 20 HP |
| Cooling Method | Fan Cooling |
| IP Level | IP20 |
| Braking Chopper | Built-in |
| Storage/Transportation Temperature | -25 ~ 70 |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Efficiency (%) | 97.8 |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Control Method | Pulse Width Modulated (PWM) |
| Input Rated Voltage/Frequency | 323 ~ 528 VAC |
| Drive Weight (Kg) | 9.8 Β± 1.5 kg |
