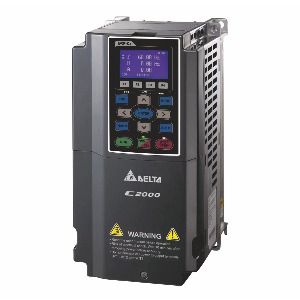

VFD040C43A : Delta VFD 460 V
Technical Specifications of Delta VFD 460 V VFD040C43A:
- Series: C2000
- Input Voltage: 460V Three-phase
- Motor Output (kW): 4 kW
- Motor Output (HP): 5 HP
- Cooling Method: Fan Cooling
- Enclosure Rating: IP20.
Delta VFD 460 V VFD040C43A Technical Specifications:
| Series Name | C2000 |
| Input Voltage / Frequency | 460V, Three-phase AC 380 V ~ 480 V ( -15%~+10%), 50/60Hz |
| Applicable Motor Output (kW)-NORMAL DUTY | 4 kW |
| Applicable Motor Output (HP)-NORMAL DUTY | 5 HP |
| Output Current (A) -NORMAL DUTY | 10.5 A |
| Output Capacity (kVA)-NORMAL DUTY | 8.4 kVA |
| Cooling Method | Fan Cooling |
| IP Level | IP20 |
| Efficiency (%) | 97.8 |
| Storage/Transportation Temperature | -25 ~ 70 |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| EMC Filter | Built-in |
| Braking Chopper | Built-in |
| Control Method | Pulse Width Modulated (PWM) |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Input Rated Voltage/Frequency | 323 ~ 528 VAC |
| Net Weight | 2.6 ± 0.3 kg |
IndMALL offers the Delta VFD040C43A, a high-performance Delta VFD 460V series C2000, featuring an input voltage of 460V three-phase, motor output of 4 kW (5 HP), fan cooling system, and an enclosure rating of IP20.
