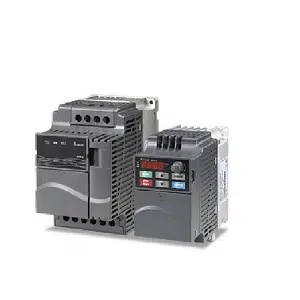

Delta VFD022E43A Variable Frequency Drive
The Delta VFD022E43A Variable Frequency Drive is designed for controlled motor operation, supporting 2.2 kW and 3 HP applications using a stable 3-phase, 380-480V input at 50 / 60Hz. It delivers a rated 5.5 A output current with an 4.4 kVA output capacity, enabling dependable speed and torque adjustment across industrial equipment. The drive uses a Fan Cooling thermal method and features an IP20 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta E Series.
| Brand | Delta |
| Product Type | VFD |
| Model Number | VFD022E43A |
Delta VFD022E43A Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Applicable Motor Output ( kW) | 2.2 kW |
| Applicable Motor Output (HP) | 3 HP |
| Input Voltage / Frequency | 3-phase, 380-480V, 50/60Hz |
| Output Current (A) | 5.5 A |
| Output Capacity (kVA) | 4.4 kVA |
| Cooling Method | Fan Cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | 20βC~60βC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattem | SPWM (Sinusoidal Pulse Width Modulation) Control (V/F or sensorless vector control) |
| Input Frequency Tolerance | Β±5% (47-63Hz) |
| Voltage Tolerance | Β±10% (342-528V) |
| Version Type | A: Standard drive |
| Net Weight | 1.9 kg |
