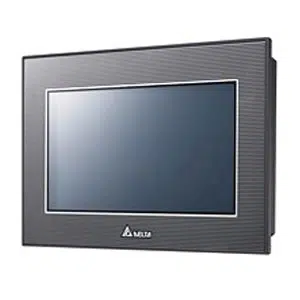

Delta TP70P-211LC1T Human Machine Interface
The Delta TP70P-211LC1T Human Machine Interface is designed as a text-based operator panel with integrated I/O capabilities for compact automation and machine-level control tasks. It incorporates Transistor output handling, structured text-display interaction, and onboard signal channels including 17 DI, 24 DO, and 4(I) AO suitable for parameter entry, status viewing, and basic process adjustment. Built for fixed panel mounting, the unit provides consistent operator communication across equipment requiring combined text display and local I/O functionality. Manufactured by Delta, part of the Delta HMI family within the Delta TP Series.
| Brand | Delta |
| Product | HMI |
| Model Number | TP70P-211LC1T |
Delta TP70P-211LC1T Human Machine Interface - Technical Specifications:
| Specification | Value |
|---|---|
| Output Type | Transistor |
| DI | 17 |
| DO | 24 |
| AO*2 | 4(I) |
| CPU | 32-bit CPU and ASIC dual processors that support floating point operations. |
| Program Memory | 64 Mbytes |
| Power Supply Voltage | 24 VDC (-15% ~ 20%) (DC input power polarity reversal protection) |
| Power Consumption | 24W |
| Power Protection | DC input power polarity reversal protection |
| Insulation resistance | > 5 MΞ© (The voltage between all I/O terminals and the ground is 500 V DC.) |
| Noise Immunity | ESD (IEC 61131-2, IEC 61000-4-2): 8 kV air discharge EFT (IEC 61131-2, IEC 61000-4-4): Power line: 2 kV, Digital I/O: 1 kV, Analog & Communication I/O: 1 kV Damped-Oscillatory Wave: Power Line: 1 kV, Digital I/O: 1 kV RS (IEC 61131-2, IEC 61000-4-3): 26 MHz~1 GHz, 10 V/m |
| Ground | The diameter of the ground used should not be less than the diameters of the wires connected to the power terminals of the PLC used. (If several PLCs are used simultaneously, please use single-point ground.) |
| Operating Temperature | 0Β°C~50Β°C Relative humidity: 20%~90% RHγ0~40Β°Cγ,10%~55% RHγ41~50Β°Cγ Pollution degree 2 (No condensation) |
| Storage Temperature | -20Β°C~60Β°C |
| Waterproof Class of the Front Panel | Transfer of thermal energy via convection |
| Vibration/Shock resistance | International standards IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Cooling method | Transfer of thermal energy via convection |
| Dimensions | 205.6 x 142.6 x 87.7 |
| Weight | 900 g |
