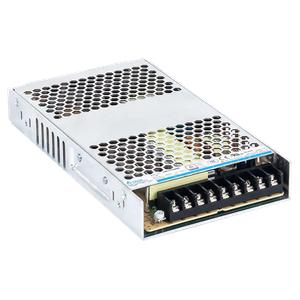

Delta PMR-4V320WDBA - 60A 252W Panel Mount Power Supply

Technical Specifications of Delta PMR-4V320WDBA 60A 252W Panel Mount Power Supply

Brand	Delta
Product Type	SMPS
Product	PMR-4V320WDBA

Delta 60A 252W Panel Mount Power Supply PMR-4V320WDBA Technical Specifications:

Specification	Value
Output Current	60A
Output Voltage	4.2V
Output Voltage Adjustment Range	-
Output Power	252W
Start-up Time	3000ms typ. @ 115Vac 1500ms typ. @ 230Vac (100% load)
Hold-up Time	8ms typ. @ 115Vac & 230Vac
Nominal Input Voltage	100-240Vac
Input Voltage Range	88-264Vac
Nominal Input Frequency	50-60Hz
Input Frequency Range	47-63Hz
Input Current	< 4.50A@115Vac, < 2.50A @ 230Vac
Case Chassis / Cover	Aluminium
Indicator	Green LED (DC OK)
Cooling System	Convection
Unit Weight	0.86 kg (1.90 lb)
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Power De-rating	> 40°C de-rate power by 1% / °C, > 50°C de-rate power by 1.5% / °C < 110Vac de-rate power by 1% / 1V
Operating Humidity	5 to 95% RH (Non-Condensing)

Obtain a Quote for Delta 60A 252W Panel Mount Power Supply PMR-4V320WDBA at economical prices. Specifications Overview for PMR-4V320WDBA reveals 60A Output Current and Output Voltage 4.2V, 252W Output Power at competitive prices. Key technical parameters include a nominal input voltage of 100-240Vac, with an input voltage range of 88-264Vac, operating at a nominal input frequency of 50-60Hz. The input current is < 4.50A@115Vac, < 2.50A @ 230Vac, ensuring efficient performance. The power supply operates smoothly within an operating temperature range of -20°C to +70°C, making it ideal for diverse environments. It also features a storage temperature range from -40°C to +85°C, ensuring durability. Take the First Step with a Quote for your requirement of 60A 252W Panel Mount Power Supply. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
