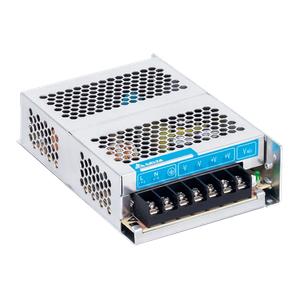

PMC-12V100W1AA - Delta 8.34A 100W Panel Mount Power Supply
Technical Specifications of Delta PMC-12V100W1AA 8.34A 100W Panel Mount Power Supply
| Brand | Delta |
| Product Type | SMPS |
| Product | PMC-12V100W1AA |
Delta 8.34A 100W Panel Mount Power Supply PMC-12V100W1AA Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 8.34A |
| Output Voltage | 12V |
| Output Voltage Adjustment Range | 11-14Vdc |
| Output Power | 100W |
| PARD | < 100mVpp |
| Start-up Time | < 1000ms @ nominal input (100% load) |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 85-264Vac |
| Nominal Input Frequency | 125-250Vdc |
| Input Frequency Range | 47-63Hz |
| Nominal DC Input Voltage | 125-250Vdc |
| DC Input Voltage Range | 125-375 Vdc |
| Input Current | < 2.0A @ 115Vac, < 1.1A @ 230Vac |
| Leakage Current | < 1mA @ 240Vac |
| Power Dissipation | 0% load: < 1.5W @ 115Vac & 230Vac 100% load: < 18.5W @ 115Vac, < 15W @ 230Vac |
| Case Chassis / Cover | Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Noise Sound Pressure Level (SPL) | < 40dBA |
| Input/Output Terminal | - |
| Unit Weight | 0.45 kg (0.99 lb) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Over Voltage Category | II |
Get A Quote for Delta 8.34A 100W Panel Mount Power Supply PMC-12V100W1AA at the best price. Here are the brief Technical Specifications of PMC-12V100W1AA are 8.34A, Output Current and 12V, Output Voltage 100W Output Power, suitable for diverse applications. It operates on a nominal input voltage of 100-240Vac and supports a frequency range of 50-60Hz. Additionally, it can handle a nominal DC input voltage of 125-250Vdc, with an input voltage range from 125-375 Vdc. This power supply features a compact design with an input current of < 2.0A @ 115Vac, < 1.1A @ 230Vac, making it energy-efficient. The unit comes with an Green LED (DC OK) indicator, ensuring easy monitoring. Designed for harsh conditions, it operates reliably within an Operating Temperature of -10°C to +70°C and offers storage safety between -25°C to +85°C. It's Time to get a Quote for your requirement of 8.34A 100W Panel Mount Power Supply. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
