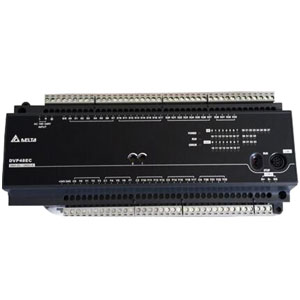

DVP48EC00T3 - Delta 28 Input 20 Output PLC
Technical Specifications of DVP48EC00T3 Delta 28 Input 20 Output PLC
| Spec | Value |
|---|---|
| Brand | Delta |
| Product Type | PLC |
| Product | DVP48EC00T3 |
🛠️ Get Quotes Instantly from Delta Vendors
DVP48EC00T3 Technical Specifications:
| Specification | Value |
|---|---|
| Output Method | Transistor |
| Power Supply | 100 ~ 240VAC (-15% ~ 10%); 50/60Hz + -5% |
| Number of Inputs and Type | 28- Digital |
| Number of Outputs and Type | 20- Transistor |
| Fuse Capacity | 2A/ 250VAC |
| Power Consumption | 22.5VA |
| Program Capacity | 16k Steps |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | 10ms |
| Vibration/shock resistance | International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
Searching for the Delta DVP48EC00T3, part of the DVP-EC3 Series, is a great option. It operates on 100-240VAC power and features transistor outputs. With 28 digital inputs and 20 transistor outputs, it's ideal for temperatures from 0°C to 55°C. It has a program capacity of 16k steps and a power consumption of 22.5VA. It also requires a 24VDC input signal. For the best Delta PLC prices, IndMALL Automation is the place to go.
