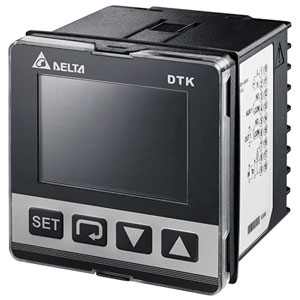

DTK7272V12 - Delta 100–240VAC, 50/60Hz Temperature Controller
Technical Specifications of DTK7272V12 Delta 100–240VAC, 50/60Hz Temperature Controller
| Brand | Delta |
| Product Type | Temperature Controller |
| Product | DTK7272V12 |
Delta 100–240VAC, 50/60Hz Temperature Controller DTK7272V12 Technical Specifications:
| Specification | Value |
|---|---|
| Panel Size (W×H) | 7272 W72 × H72mm |
| Output options | V: Voltage pulse output 12VDC +/-15% |
| Communication option | 1: RS485 communication |
| Alarm option | 2 alarm output |
| Input Voltage | AC 100 ~ 240V +/-10%, 50/60 Hz |
| Power Consumption | 5VA max. |
| Display Method | LCD display.Process value (PV): Red color, Set point (SV): Green color |
| Control Mode | PID, manual, and ON/OFF |
| Sensor Type | LCD display.Process value (PV): Red color, Set point (SV): Green color Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK 3-wire Platinum RTD: Pt100, JPt100 Resistance: Cu50, Ni120 |
| Control Output | Relay output: Max. load 250VAC, 5A resistive load Voltage pulse output: DC 12V, Max. output current 40 mA Current output: DC 4 ~ 20 mA output (Load resistance: Max. 600Ω) |
| Alarm Output Type | Relay output: Max. load 250VAC, 3A resistive load |
| Display Accuracy | 0 or 1 digit to the right of the decimal point (selectable) |
| Sampling Rate | Thermocouple or platinum resistor: 0.1 sec |
| Vibration Resistance | 10 to 55 Hz, 10 m/s2 for 10 min, each in X, Y, and Z directions |
| Shock Resistance | Max. 300 m/s2, 3 times in each of 3 axes, 6 directions |
| Ambient Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +65°C |
| Altitude | Max. 2000 m |
| Relative Humidity | 35% ~ 80% RH (non-condensing) |
Ask for the Pricing of Delta 100–240VAC, 50/60Hz Temperature Controller , DTK7272V12 with budget-friendly prices. Specifications Overview for DTK7272V12 reveals 2 alarm output, 1: RS485 communication, V: Voltage pulse output 12VDC +/-15%, 7272 W72 × H72mm. And It Comes With AC 100 ~ 240V +/-10%, 50/60 Hz, 5VA max., AC 100 ~ 240V +/-10%, 50/60 Hz. Customize Your Experience with a Quote for your requirement of Delta 100–240VAC, 50/60Hz Temperature Controller . Our commitment to better pricing and exceptional support sets us apart from other Competitors.
