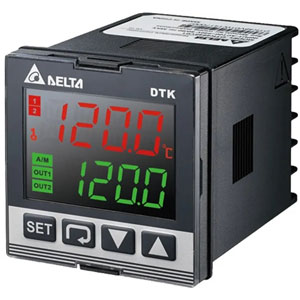

Delta DTK9696V01 Temperature Controller Panel Mount
Delta DTK9696V01 Temperature Controller is designed for precise thermal regulation in industrial automation systems where accurate output control is required. This Delta temperature controller features a 96 × 96 mm panel-mount design, making it suitable for control panels that require better visibility and easy operation. It uses voltage pulse output to control SSR-based heating systems with stable response and includes an alarm output for process monitoring. The LCD display clearly shows process value and set point, helping operators monitor and adjust temperature efficiently. Developed under Delta automation solutions, it belongs to the temperature control category and is part of the DTK Series controllers used in machine-level applications.
| Brand | Delta |
| Product Type | Temperature Controller |
| Product | DTK9696V01 |
Delta Multi-Sensor Input Temperature Controllers DTK9696V01 Technical Specifications:
| Specification | Value |
|---|---|
| Panel Size (W×H) | 9696 1/4 DIN W96 × H96mm |
| Output options | V: Voltage pulse output 12VDC +/-15% |
| Communication option | 0: None |
| Alarm option | 1 alarm output |
| Input Voltage | AC 100 ~ 240V +/-10%, 50/60 Hz |
| Power Consumption | 5VA max. |
| Display Method | LCD display.Process value (PV): Red color, Set point (SV): Green color |
| Control Mode | PID, manual, and ON/OFF |
| Sensor Type | LCD display.Process value (PV): Red color, Set point (SV): Green color Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK 3-wire Platinum RTD: Pt100, JPt100 Resistance: Cu50, Ni120 |
| Control Output | Relay output: Max. load 250VAC, 5A resistive load Voltage pulse output: DC 12V, Max. output current 40 mA Current output: DC 4 ~ 20 mA output (Load resistance: Max. 600Ω) |
| Alarm Output Type | Relay output: Max. load 250VAC, 3A resistive load |
| Display Accuracy | 0 or 1 digit to the right of the decimal point (selectable) |
| Sampling Rate | Thermocouple or platinum resistor: 0.1 sec |
| Vibration Resistance | 10 to 55 Hz, 10 m/s2 for 10 min, each in X, Y, and Z directions |
| Shock Resistance | Max. 300 m/s2, 3 times in each of 3 axes, 6 directions |
| Ambient Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +65°C |
| Altitude | Max. 2000 m |
| Relative Humidity | 35% ~ 80% RH (non-condensing) |
The Delta DTK9696V01 is built to provide stable temperature control in systems where voltage pulse output is required for precise operation. It supports smooth control of solid state relays, enabling efficient switching for heating applications. The 96 × 96 mm panel structure improves visibility and allows operators to easily monitor and adjust parameters during operation.
In industrial applications, this controller is used in heating systems, process equipment, and automation setups where accurate temperature regulation is important. It supports continuous operation with stable response and allows operators to monitor system conditions through a clear display interface. The alarm output helps maintain basic process monitoring and improves system awareness.
From a system integration perspective, the Delta DTK9696V01 fits automation environments that require a larger interface with precise output control capability. It supports reliable long-term operation under varying industrial conditions while maintaining consistent performance. This makes it a practical choice for applications that require dependable temperature control with stable and responsive output handling.
