Delta DTK9696R12 Temperature Controller with RS485

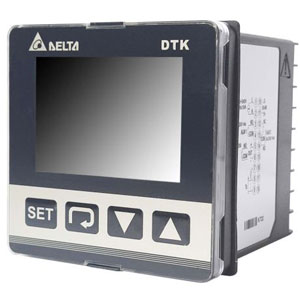

Delta DTK9696R12 Temperature Controller is designed for precise thermal regulation in industrial automation systems where communication and stable control are required. This Delta temperature controller features a 96 × 96 mm panel-mount design, making it suitable for control panels that require enhanced visibility and easy operation. It uses relay output to control heating or cooling devices and includes RS485 communication for system integration. With dual alarm outputs, it supports better process monitoring and safety. Developed under Delta automation solutions, it belongs to the temperature control category and is part of the DTK Series controllers used in machine-level applications.
| Brand | Delta |
| Product Type | Temperature Controller |
| Product | DTK9696R12 |
Delta Altitude Max 2000m, RS485 Controller DTK9696R12 Technical Specifications:
| Specification | Value |
|---|---|
| Panel Size (W×H) | 9696 1/4 DIN W96 × H96mm |
| Output options | Relay output, 250 VAC, 5A |
| Communication option | 1: RS485 communication |
| Alarm option | 2 alarm output |
| Input Voltage | AC 100 ~ 240V +/-10%, 50/60 Hz |
| Power Consumption | 5VA max. |
| Display Method | LCD display.Process value (PV): Red color, Set point (SV): Green color |
| Control Mode | PID, manual, and ON/OFF |
| Sensor Type | LCD display.Process value (PV): Red color, Set point (SV): Green color Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK 3-wire Platinum RTD: Pt100, JPt100 Resistance: Cu50, Ni120 |
| Control Output | Relay output: Max. load 250VAC, 5A resistive load Voltage pulse output: DC 12V, Max. output current 40 mA Current output: DC 4 ~ 20 mA output (Load resistance: Max. 600Ω) |
| Alarm Output Type | Relay output: Max. load 250VAC, 3A resistive load |
| Display Accuracy | 0 or 1 digit to the right of the decimal point (selectable) |
| Sampling Rate | Thermocouple or platinum resistor: 0.1 sec |
| Vibration Resistance | 10 to 55 Hz, 10 m/s2 for 10 min, each in X, Y, and Z directions |
| Shock Resistance | Max. 300 m/s2, 3 times in each of 3 axes, 6 directions |
| Ambient Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +65°C |
| Altitude | Max. 2000 m |
| Relative Humidity | 35% ~ 80% RH (non-condensing) |
The Delta DTK9696R12 is built to provide stable temperature control in systems where relay-based switching and communication are required. Its relay output supports reliable operation of connected devices such as heaters and cooling units, while the RS485 interface allows integration with automation networks for centralized monitoring. The dual alarm outputs help track process conditions and maintain system safety. The 96 × 96 mm panel structure improves visibility and simplifies operation.
In industrial applications, this controller is used in ovens, process systems, and automation setups where accurate temperature regulation and communication are important. It supports continuous performance with stable response and allows operators to monitor system conditions through a clear display interface. The combination of relay output, alarm functionality, and communication capability ensures consistent control across connected systems.
From a system integration perspective, the Delta DTK9696R12 fits automation environments that require a larger interface with dependable control and communication support. It supports reliable long-term operation under varying industrial conditions while maintaining consistent performance. This makes it a practical choice for applications that require stable temperature control with effective monitoring and network connectivity.
