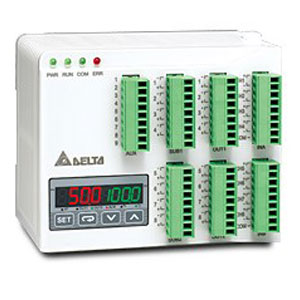

DTE20T - Delta 4-channel TC Temperature Controller
Technical Specifications of DTE20T Delta 4-channel TC Temperature Controller
| Brand | Delta |
| Product Type | Temperature Controller |
| Product | DTE20T |
Delta 4-channel TC Temperature Controller DTE20T Technical Specifications:
| Specification | Value |
|---|---|
| Channel / Output | 0T: 4-channel TC |
| Power input | DC 24V, isolated switching power supply |
| Voltage range | 90% ~ 110% rated voltage |
| Control method | PID, PID programmable, manual, ON/OFF |
| Power consumption | Max. 10W + 3W ร number of DTC2000 controllers connected in parallel (Max. 7) |
| Sampling cycle | Thermocouple or platinum resistance: 1.0 second/all input |
| Alarm modes | 12 alarm modes available |
| Input sensor | Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK Input sensor Platinum resistance: Pt100, JPt100, Cu50 |
| Output accessories (optional) | Relay output: SPST, Max. AC 250V load, 3A resistive load Voltage pulse output: DC 24V, Max. 40mA current output Current output: DC 4 ~ 20mA output (resistive load < 500); for OUT1 and OUT2 only Analog voltage output: 0 ~ 10V (resistive load > 1,000); for OUT1 and OUT2 only |
| Output functions | Control output, alarm output or proportional output (proportional output is only applicable in the model with linear voltage and current output for OUT1, OUT2) |
| Communication | RS-485 digital communication; supports baud rate 2,400bps ~ 115,200bps |
| Communication protocol | Supports Modbus ASCII/RTU |
| Vibration Resistance | 10 ~ 55Hz 10m/s2 3 axes 10mins |
| Shock Resistance | Max. 300m/s2 3 axes 6 directions, 3 times each |
| Ambient Temperature | 0ยฐC ~ +50ยฐC |
| Storage Temperature | -20ยฐC ~ +65ยฐC |
| Operation altitude | < 2,000m |
| Ambient humidity | 35% to 85% RH (non-condensing) |
| Pollution degree | 2 |
IndMALL Dealing in Delta 4-channel TC Temperature Controller, DTE20T at the best rates. Operational Specifications for DTE20T are 0T: 4-channel TC, DC 24V, isolated switching power supply , 90% ~ 110% rated voltage, PID, PID programmable, manual, ON/OFF. And It Delivers Max. 10W + 3W ร number of DTC2000 controllers connected in parallel (Max. 7), Thermocouple or platinum resistance: 1.0 second/all input, 12 alarm modes available. Unlock Exclusive Pricing with a Quote for your requirement of Delta 4-channel TC Temperature Controller. Experience the advantage of our pricing and support against other Traders.
