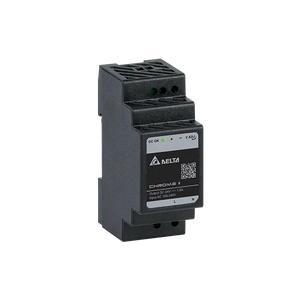

DRC-24V030W1RZ - Delta 1.5A 24V DIN Rail Power Supply
Technical Specifications of Delta DRC-24V030W1RZ 1.5A 24V DIN Rail Power Supply
| Brand | Delta |
| Product Type | SMPS |
| Product | DRC-24V030W1RZ |
Delta 1.5A 24V DIN Rail Power Supply DRC-24V030W1RZ Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 1.5A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 21.6-26.4 Vdc |
| Output Power | 36W |
| Line Regulation | Β± 0.5% @ 115 Vac & 230 Vac |
| Load Regulation | Β± 0.5% |
| PARD | < 150 mVpp @ 0Β°C to +70Β°C < 450 mVpp @ -30Β°C to 0Β°C |
| Start-up Time | 300 ms typ. @ 115 Vac & 230 Vac |
| Hold-up Time | 14 ms typ. @ 115 Vac & 70 ms typ. 230 Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | Β± 10% @ 115 Vac & 230 Vac input, 10-100% load (Slew Rate: 2.5 A/ΞΌS, 50% duty cycle @ 5 Hz & 10 kHz) |
| Start-up with Capacitive Loads | 8,000 Β΅F max. |
| Rise Time | 30 ms typ. @ 115 Vac & 230 Vac |
| Nominal Input Voltage | 100-240 Vac |
| Input Voltage Range | 85-264 Vac |
| Nominal Input Frequency | 50-60 Hz |
| Input Frequency Range | 47-63Hz |
| Input Current | < 0.9 A @ 115 Vac < 0.5 A @ 230 Vac |
| Efficiency at 100% load | 87.5% typ. @ 115 Vac 89.0% typ. @ 230 Vac |
| Inrush Current | 40 A typ. @ 230 Vac |
| Leakage Current | < 0.25 mA @ 240 Vac |
| Power Dissipation | 0% load: 0.1 W typ. @ 115 Vac & 230 Vac |
| Case Chassis / Cover | Plastic |
| Indicator | Green LED DC OK |
| Cooling System | Convection |
| Input Terminal | M2.5 x 2 Pins (Rated 300 V / 16 A) |
| Output Terminal | M2.5 x 2 Pins (Rated 300 V / 16 A) |
| Noise Sound Pressure Level (SPL) | < 25 dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input: AWG 24-12 Output: AWG 24-12 |
| Unit Weight | 0.13 kg (0.29 lb) |
| Vibration (Operating) | IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @ 2 G; 10 min per cycle, 60 min for X, Y, Z direction |
| Operating Temperature | -30Β°C to +70Β°C (-40Β°C Cold Start) |
| Storage Temperature | -40Β°C to +85Β°C |
| Power De-rating | Temperature: > 50Β°C de-rate power by 2% / Β°C Input Voltage: < 100Vac de-rate power by 1% / Vac |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction |
| Operating Altitude | 0 to 5,000 Meters (6,560 ft) |
| Pollution Degree | 2 |
| Over Voltage Category | II (Compliance to EN 62477-1 OVC III with 2,000 Meters altitude) |
Call us for Delta 1.5A 24V DIN Rail Power Supply DRC-24V030W1RZ at the best rates. Technical Attributes of DRC-24V030W1RZ are 1.5A Output Current, 24V Output Voltage, 36W Output Power at competitive prices. It operates with a nominal input voltage of 100-240 Vac and supports an input voltage range of 85-264 Vac. The power supply covers a nominal input frequency of 50-60 Hz, with a broader input frequency range of 47-63Hz. With an input current of < 0.9 A @ 115 Vac < 0.5 A @ 230 Vac, it ensures efficient performance. The unit features a Green LED DC OK indicator, aiding in quick status checks. Both input and output terminals have M2.5 x 2 Pins (Rated 300 V / 16 A) and M2.5 x 2 Pins (Rated 300 V / 16 A) for secure connections. Designed for extreme environments, it Operating Temperature from -30Β°C to +70Β°C (-40Β°C Cold Start) and has a storage temperature of -40Β°C to +85Β°C. Unlock Exclusive Pricing with a Quote for your requirement of 1.5A 24V DIN Rail Power Supply. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
